צירים סמויים

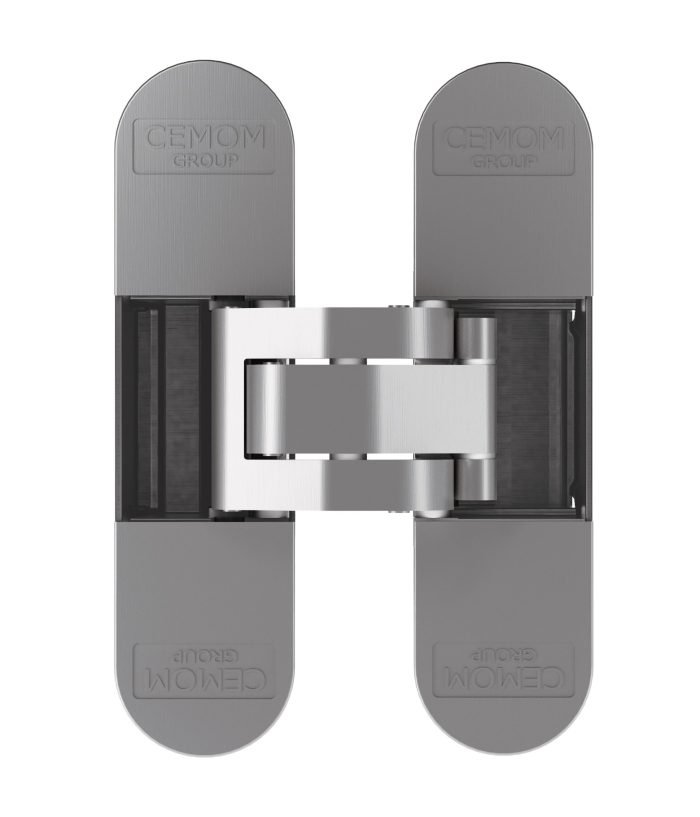

ESTETIC 80A
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• ABS front covers
• length 111,5 mm , width 29 mm
• 180° opening angle
• customised finishes on request

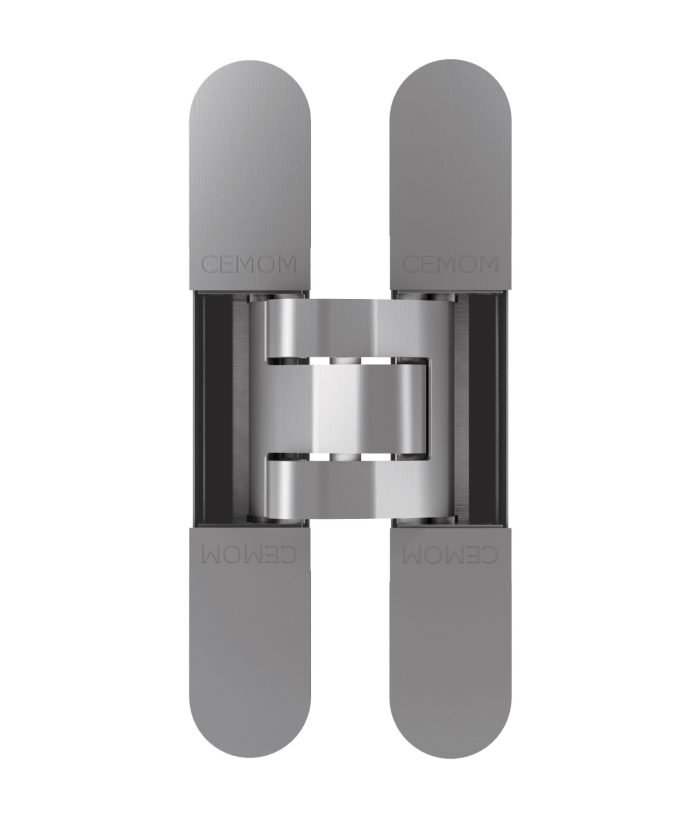

ESTETIC 100 M
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 100 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2,5 mm, height +/- 2,5 mm, compression +/- 1 mm)
• steel front covers (magnetic fixing)
• length 160 mm , width 28 mm
• 180° opening angle
• customised finishes on request
ESTETIC 130+8
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• suitable for claddings up to 8 mm
• load capacity 130 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 3mm, height +/- 3 mm, compression +/- 1 mm)
• steel front covers
• length 200 mm , width 37 mm
• 180° opening angle
• customised finishes on request
ESTETIC 150
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 150 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 3mm, height +/- 3 mm, compression +/- 1 mm)
• steel front covers (magnetic fixing)
• length 200 mm , width 32 mm
• 180° opening angle
• customised finishes on request

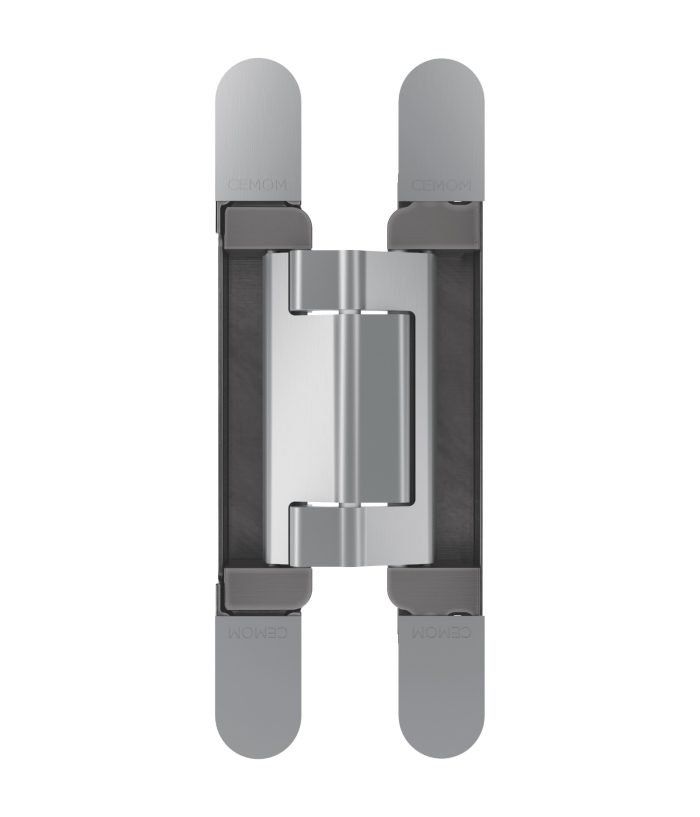

ESTETIC 200
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• suitable for claddings up to 7,5 mm
• load capacity 200 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 3mm, height +/- 3 mm, compression +/- 1,5 mm)
• steel front covers (magnetic fixing)
• length 260 mm , width 36/32 mm
• 180° opening angle
• customised finishes on request
ESTETIC 1821A
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated and flush rebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 3 mm, height +/- mm, compression +/- 1,5 mm)
• steel front covers (magnetic fixing)
• length 155 mm , width: 21 mm frame side, 18 mm door side
• 180° opening angle
• customised finishes on request
ESTETIC ALU 60A M
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 60 kg/2 hinges
• for use in wooden, steel and aluminum profiles (ideal solution for aluminium frames)
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2,5 mm, compression +/- 1 mm)
• steel front covers (magnetic fixing)
• length 110 mm , width 24 mm
• 180° opening angle
• customised finishes on request

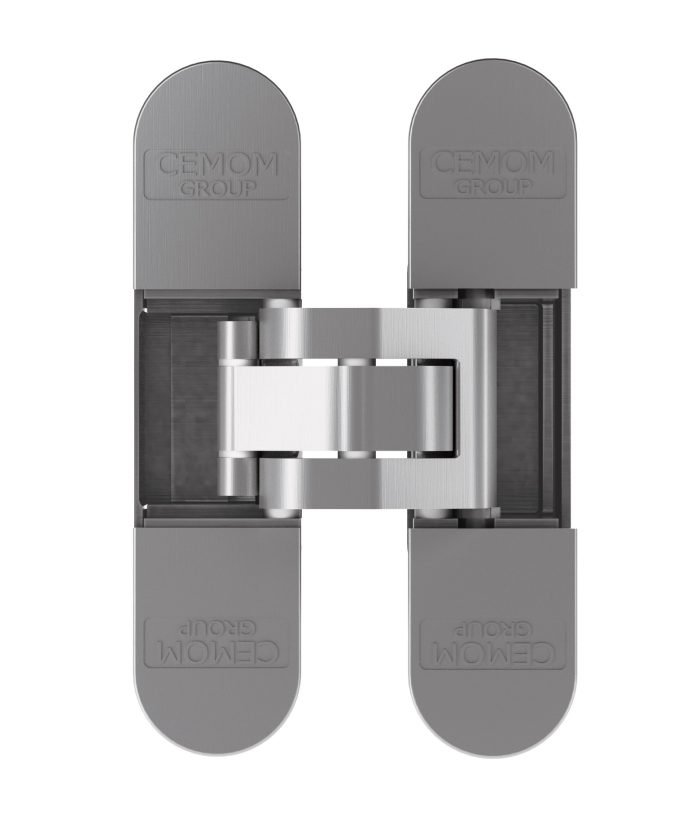

ESTETIC W978A
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 60 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• ABS front covers
• length 95 mm , width 23 mm
• 180° opening angle
• customised finishes on request

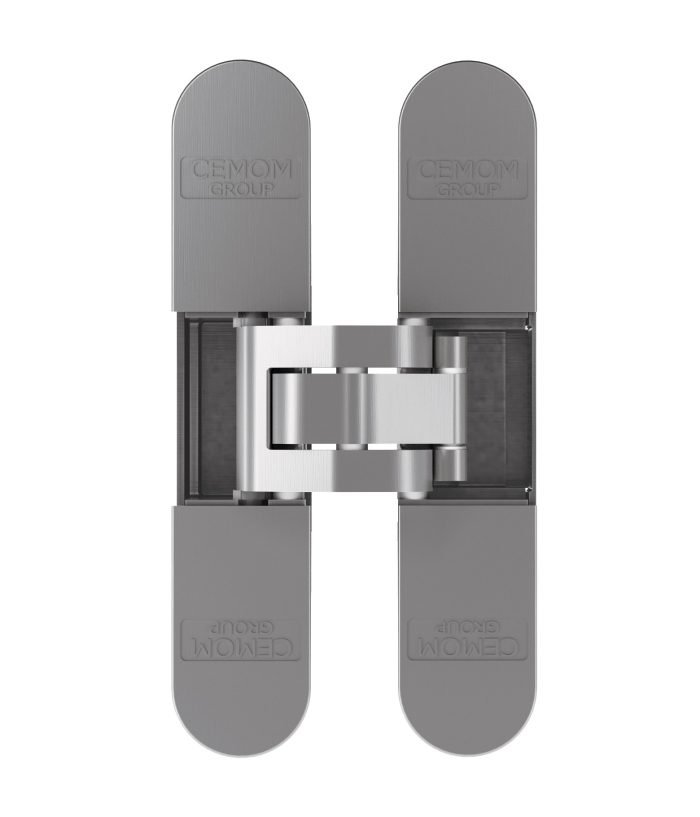

ESTETIC 4001A
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 60 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• ABS front covers
• length 115 mm , width 23 mm
• 180° opening angle
• customised finishes on request

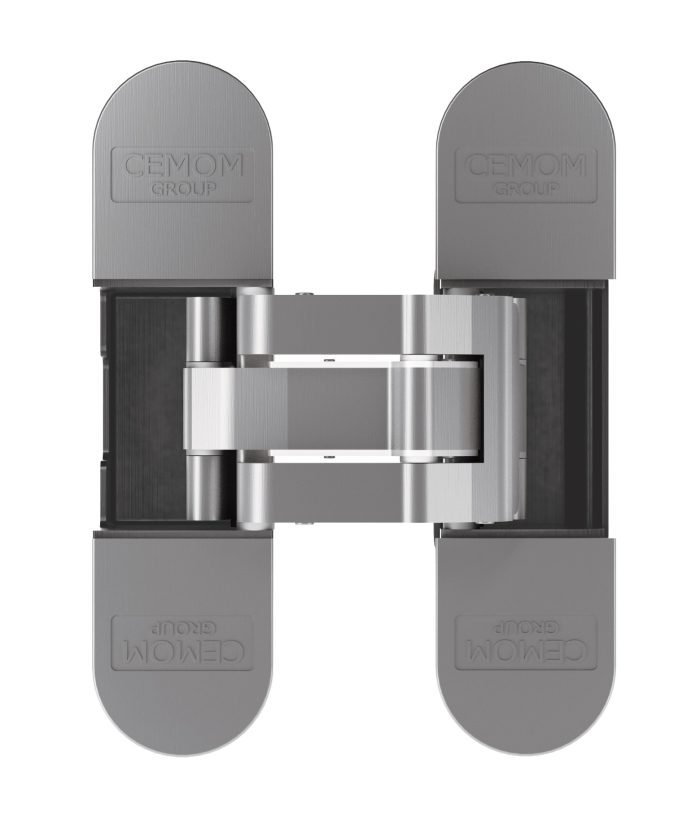

ESTETIC A601
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 50 kg/2 hinges
• asymmetric hinge – distance in frame up to 14,5 mm
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2,5 mm, compression +/- 1 mm)
• ABS front covers
• length 111,5 mm , width 29 mm
• 180° opening angle
• customised finishes on request

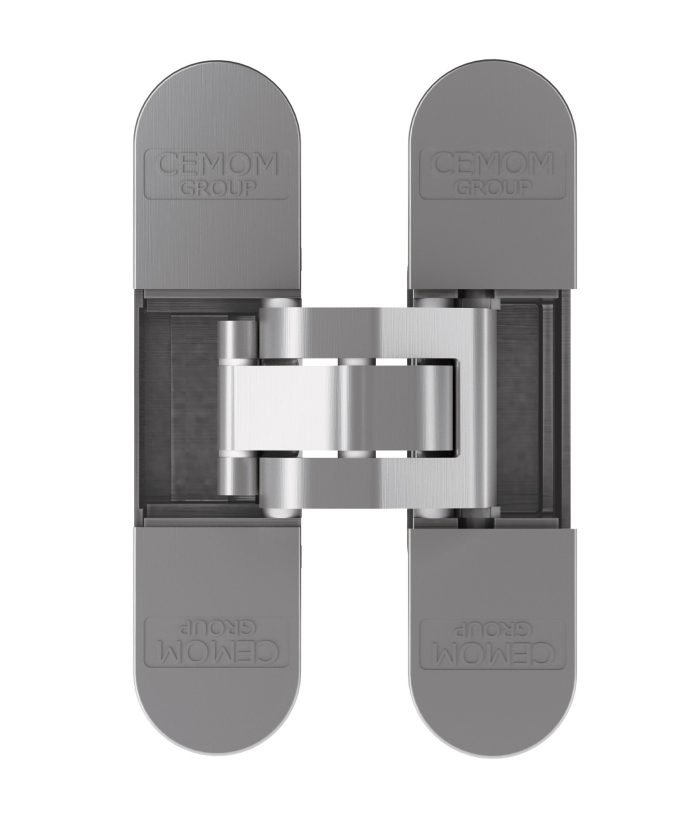

ESTETIC 978 3D-ME
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 60 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• ABS front covers
• length 95 mm , width 23 mm
• 180° opening angle
• customised finishes on request

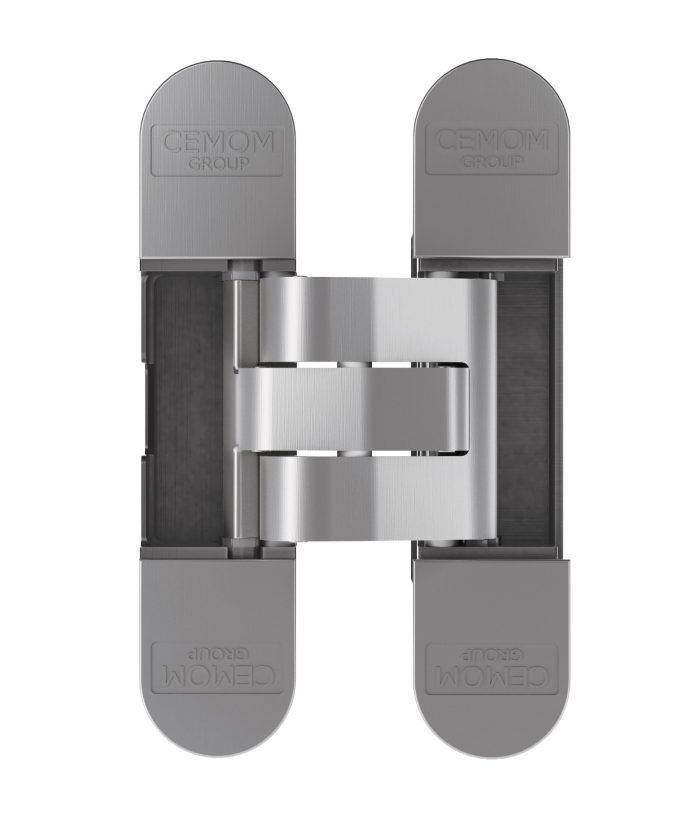

ESTETIC 27
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 60 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side + 3/- 2 mm, height +/- 3 mm, compression +/- 1 mm)
• ABS front covers
• length 120 mm , width 27mm
• 180° opening angle
• customised finishes on request

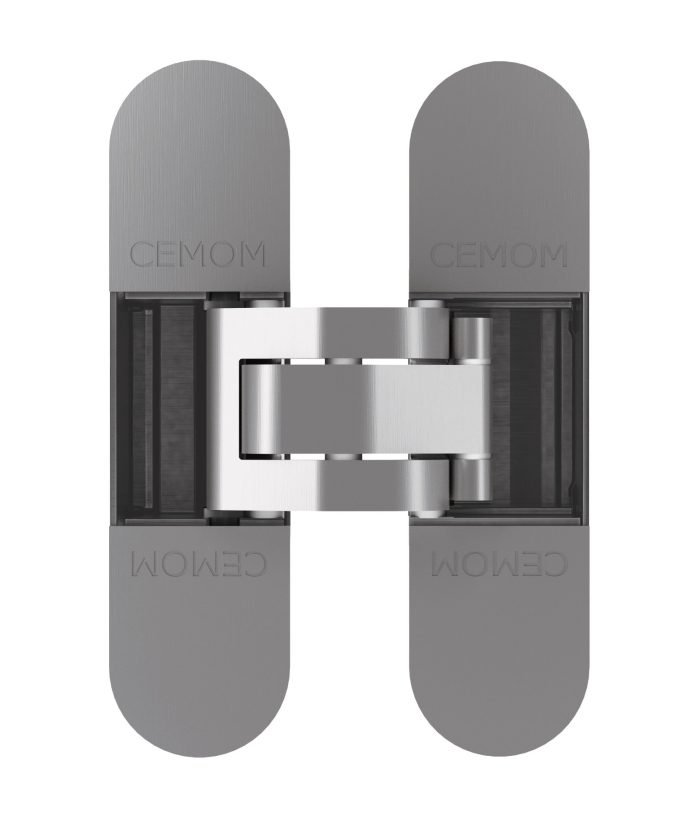

ESTETIC 80A HP M
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• steel front covers (magnetic fixing)
• length 111,5 mm , width 29 mm
• 180° opening angle
• customised finishes on request

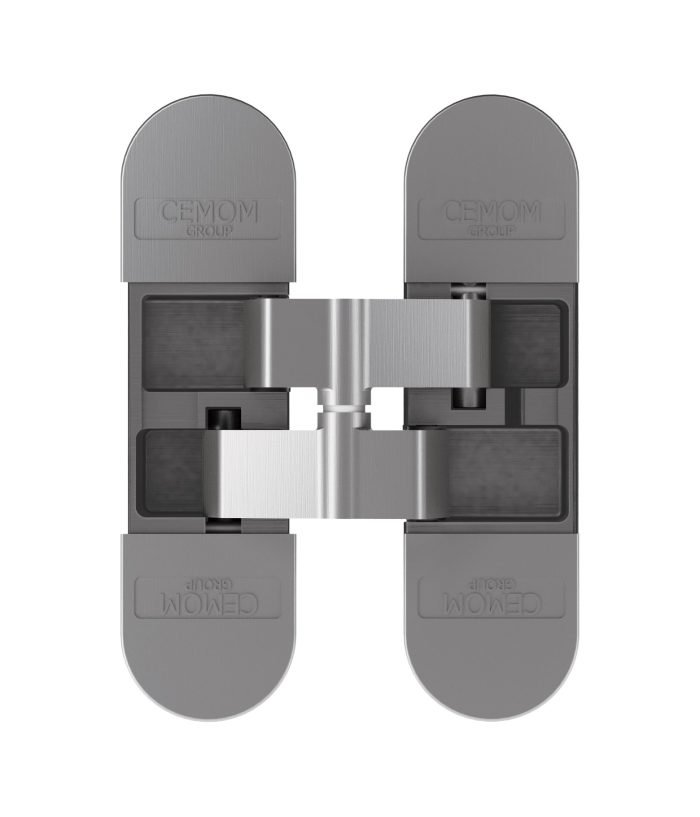

SIMPLY 8925 R+
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 40 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 2D adjustment (height +/- 2 mm, compression +/- 1 mm)
• ABS front covers
• length 89 mm , width: 25 mm frame side, 23mm door side
• 180° opening angle
• customised finishes on request

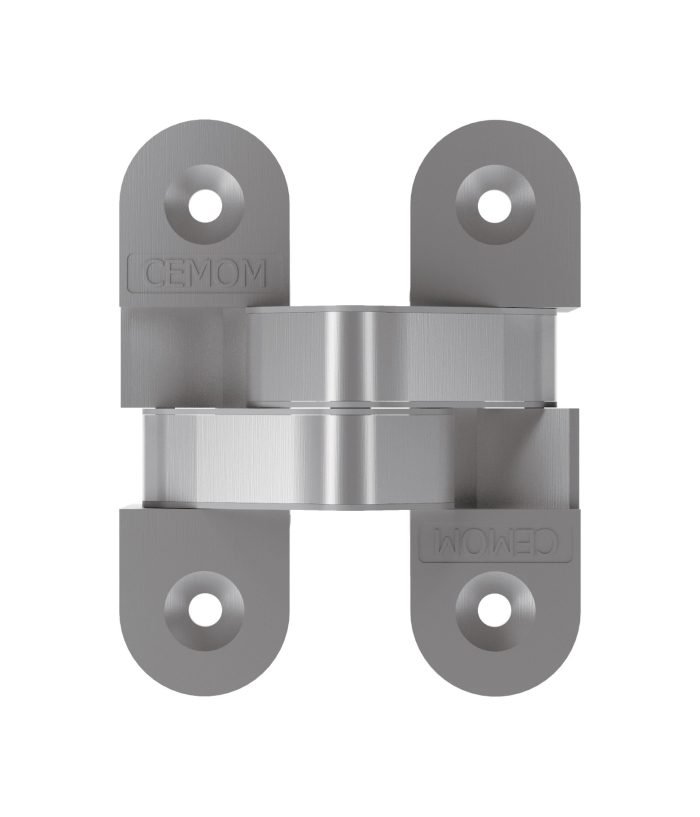

SIMPLY 1078ss304
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• requires lubrication
• length 86,2 mm , width 25,5 mm
• 180° opening angle

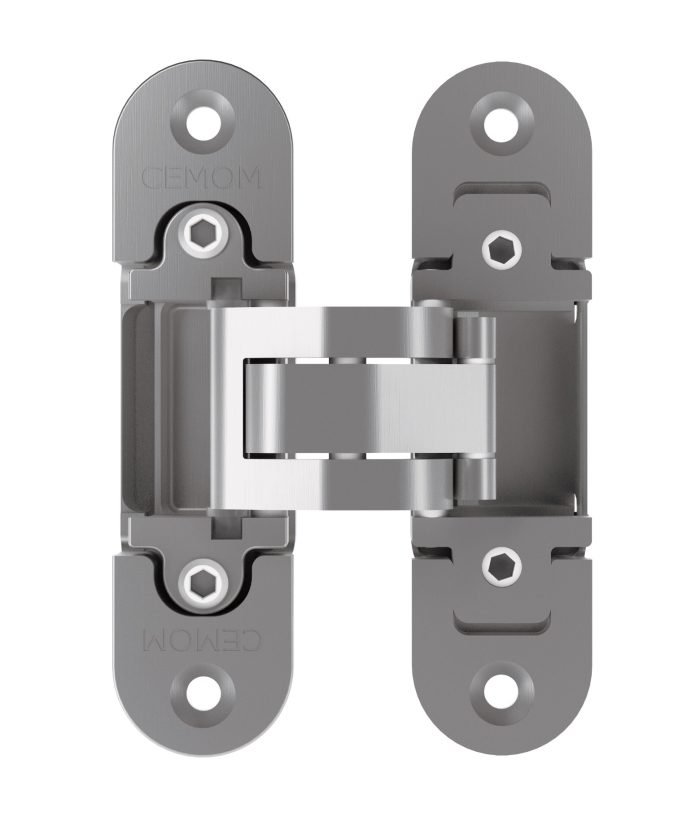

ESTETIC 80ss304
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• length 111,5 mm , width 29 mm
• 180° opening angle
• stainless steel finishing
SIMPLY 8925
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 40 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• ABS front covers
• length 89 mm , width 25 mm
• 180° opening angle
• customised finishes on request

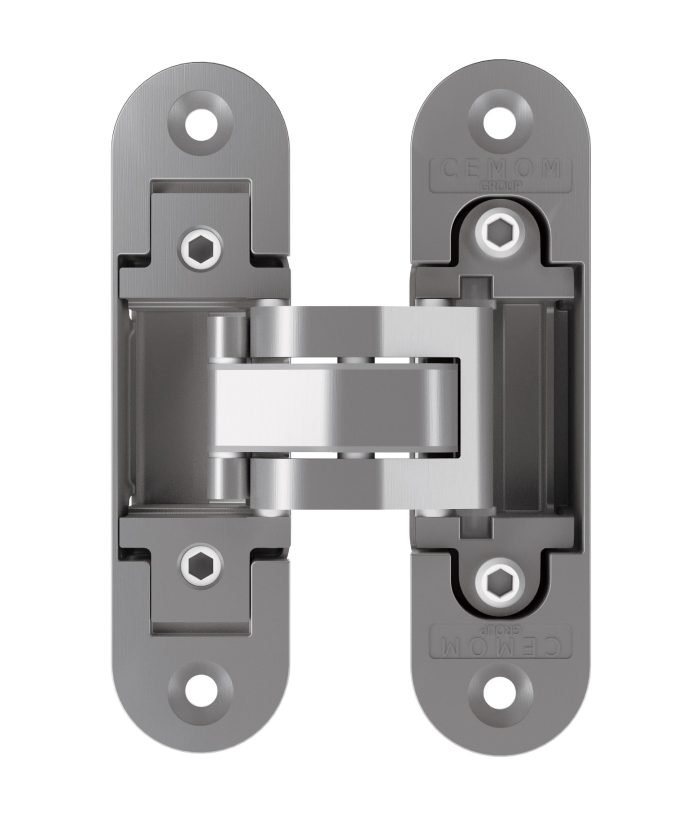

ESTETIC 80
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• without covers
• length 111,5 mm , width 29 mm
• 180° opening angle
• customised finishes on request

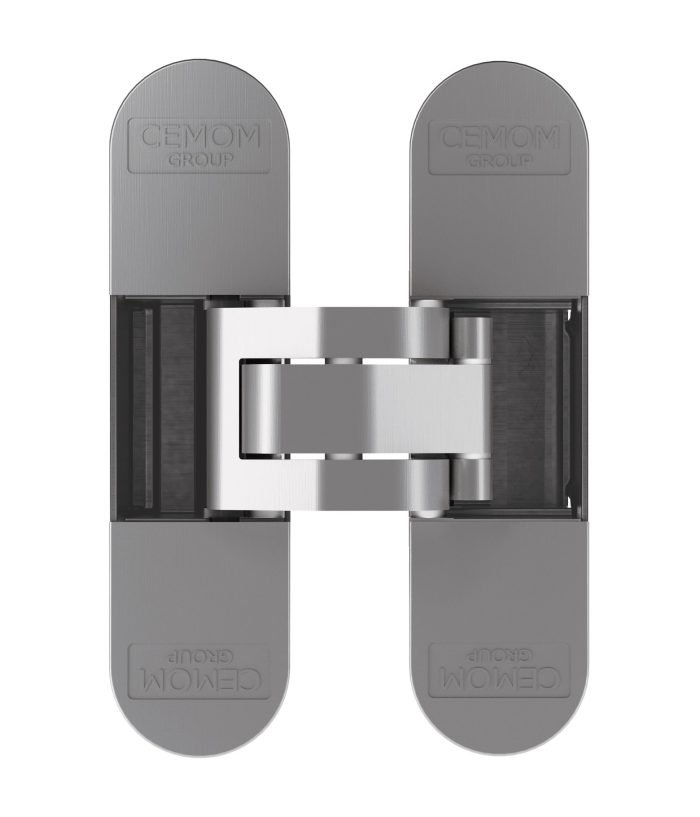

ESTETIC 80A HP
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• ABS front covers
• length 111,5 mm , width 29 mm
• 180° opening angle
• customised finishes on request

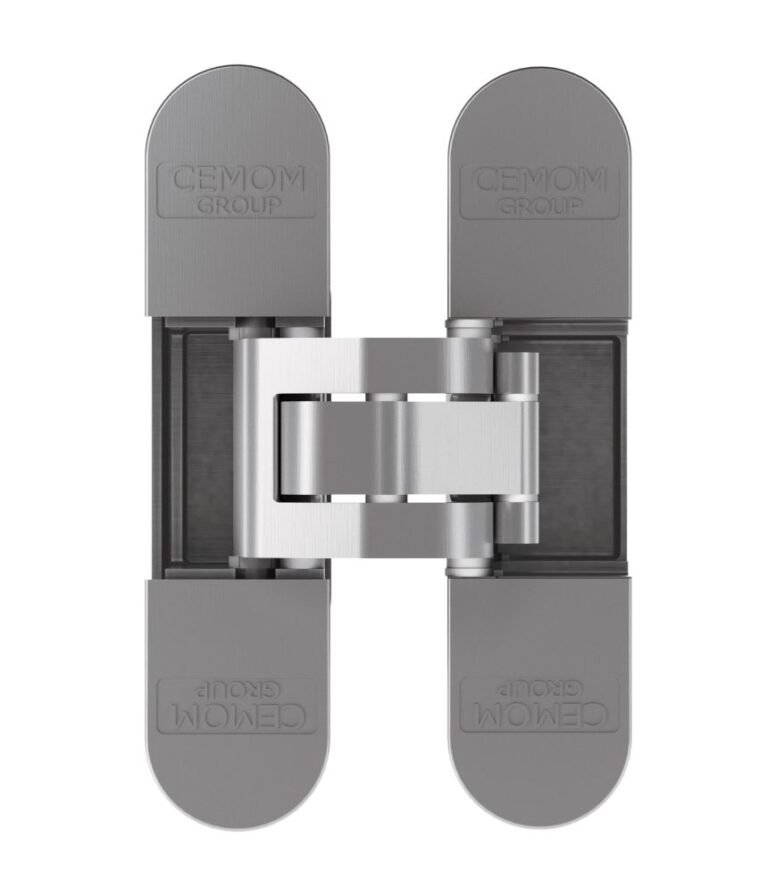

ESTETIC 978
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 40 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2,5 mm, compression +/- 1 mm)
• ABS front covers
• length 95 mm , width 23 mm
• 180° opening angle
• customised finishes on request
ESTETIC W978
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 60 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• without covers
• length 95 mm , width 23 mm
• 180° opening angle
• customised finishes on request

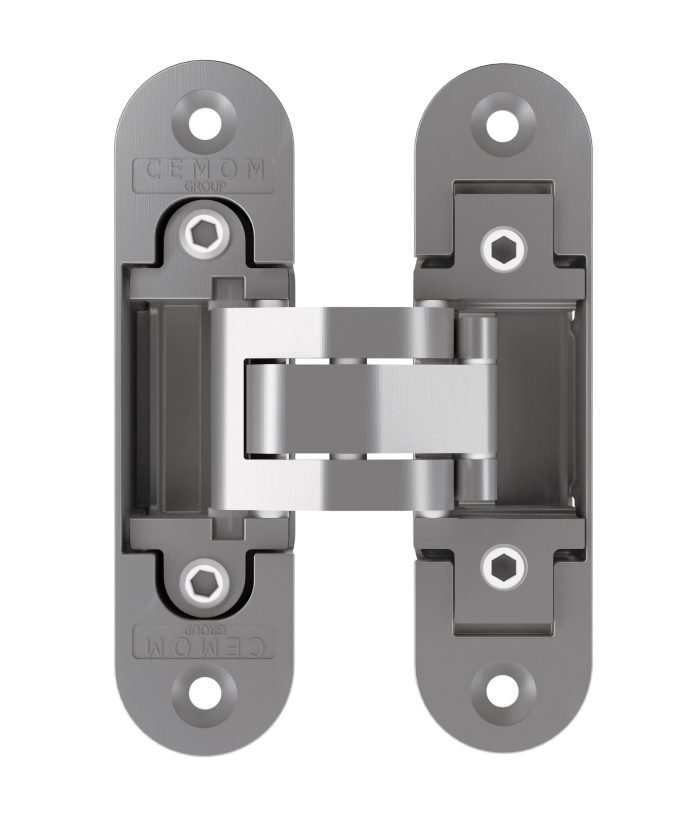

ESTETIC 80 HP
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 80 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2 mm, height +/- 2 mm, compression +/- 1 mm)
• without covers
• length 111,5 mm , width 29 mm
• 180° opening angle
• customised finishes on request

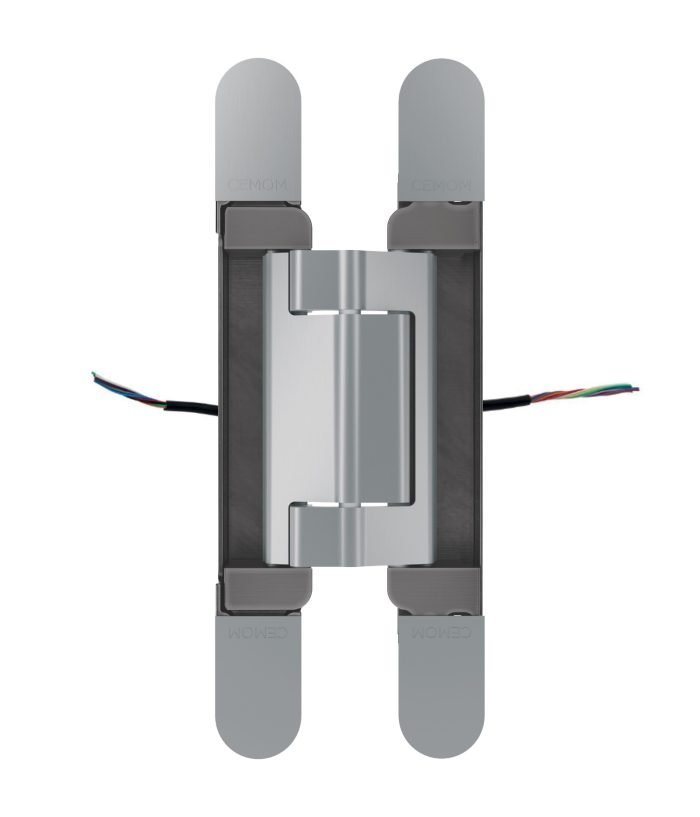

ESTETIC 200E
צירים סמויים
Product features
• całkowicie ukryty zawias do drzwi lewych i prawych
• odpowiedni do okładzin do 7,5 mm
• nośność 200 kg/2 zawiasy
• do stosowania w profilach drewnianych, stalowych i aluminiowych
• do drzwi bezprzylgowych
• bezobsługowe łożyska
• regulacja 3D (pozioma +/-3mm, wysokość +/- 3mm, docisk uszczelki +/- 1,5mm)
• stalowe nasadki maskujące
• kąt otwarcia 180°
• zapewniają ukryte połączenie między drzwiami a ościeżnicą
• nadaje się do zamków elektrycznych, urządzeń wyjściowych, niskonapięciowego oświetlenia drzwi itp.
• 12 przewodów o średnicy 0,32 mm (AWG 28, UL1213); maks. 6 obwodów
• maks. napięcie 24V DC/AC, 2A ciągłe na obwód
• złącza nie wchodzą w skład zestawu

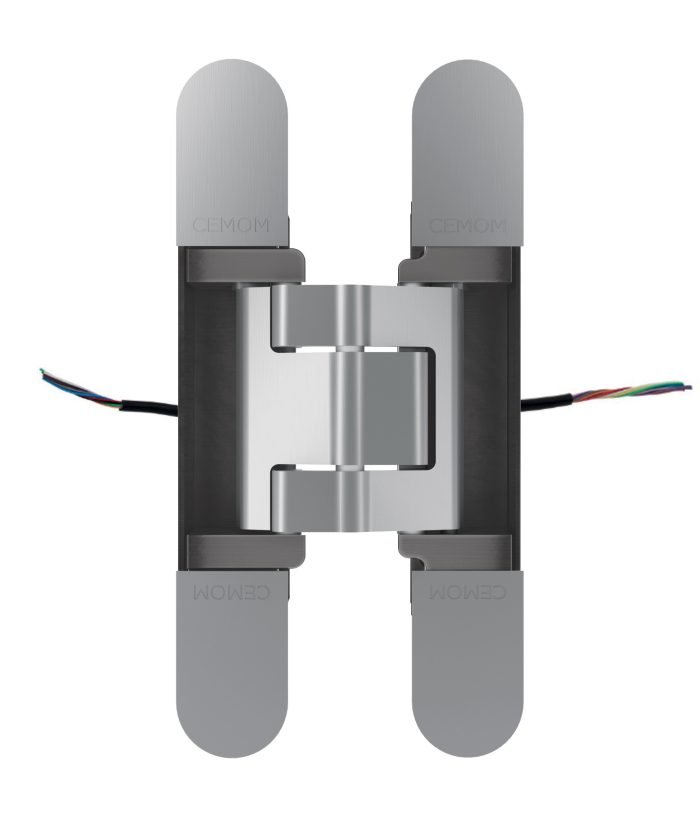

ESTETIC 150E
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 150 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 3mm, height +/- 3 mm, compression +/- 1 mm)
• steel front covers (magnetic fixing)
• length 200 mm , width 32 mm
• 180° opening angle
• customised finishes on request
• provide the concealed connection between the door ant the frame
• suitable for electric locks, exit devices, low voltage door lights, etc.
• 12 wires with a diameter of 0,32 mm (AWG 28, UL1213 style); max. 6 circuits
• max. voltage 24V DC/AC , 2A continuous per circuit
• connectors not included

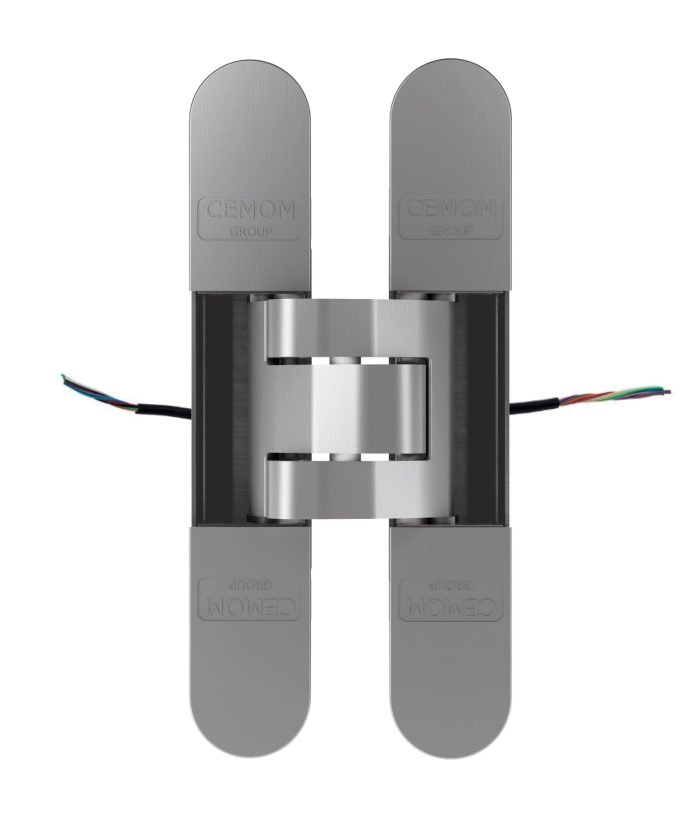

ESTETIC 100E
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 100 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2,5 mm, height +/- 2,5 mm, compression +/- 1 mm)
• ABS front covers
• length 160 mm , width 28 mm
• 180° opening angle
• customised finishes on request
• provide the concealed connection between the door ant the frame
• suitable for electric locks, exit devices, low voltage door lights, etc.
• 12 wires with a diameter of 0,32 mm (AWG 28, UL1213 style); max. 6 circuits
• max. voltage 24V DC/AC , 2A continuous per circuit
• connectors not included

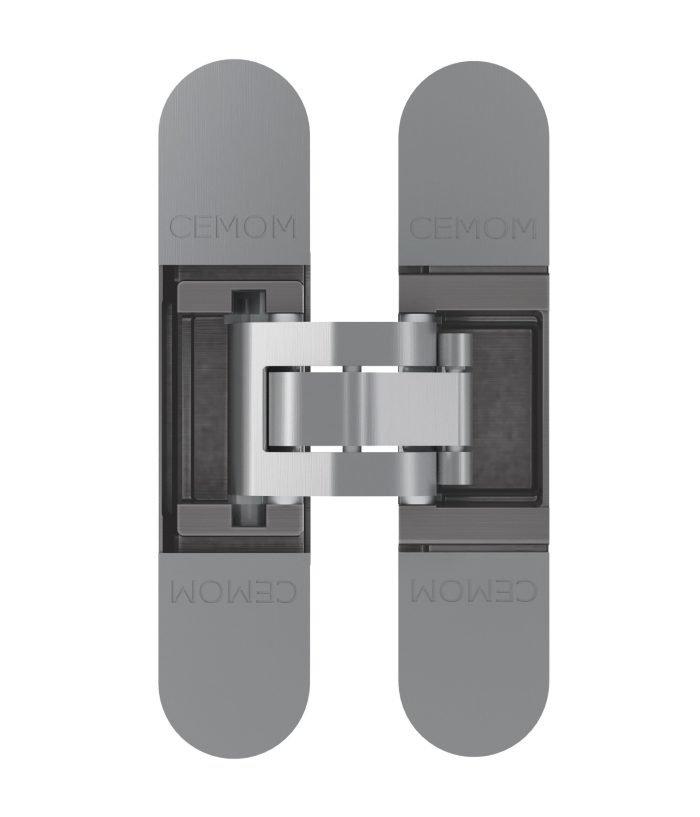

ESTETIC 100
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• load capacity 100 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 2,5 mm, height +/- 2,5 mm, compression +/- 1 mm)
• ABS front covers
• length 160 mm , width 28 mm
• 180° opening angle
• customised finishes on request

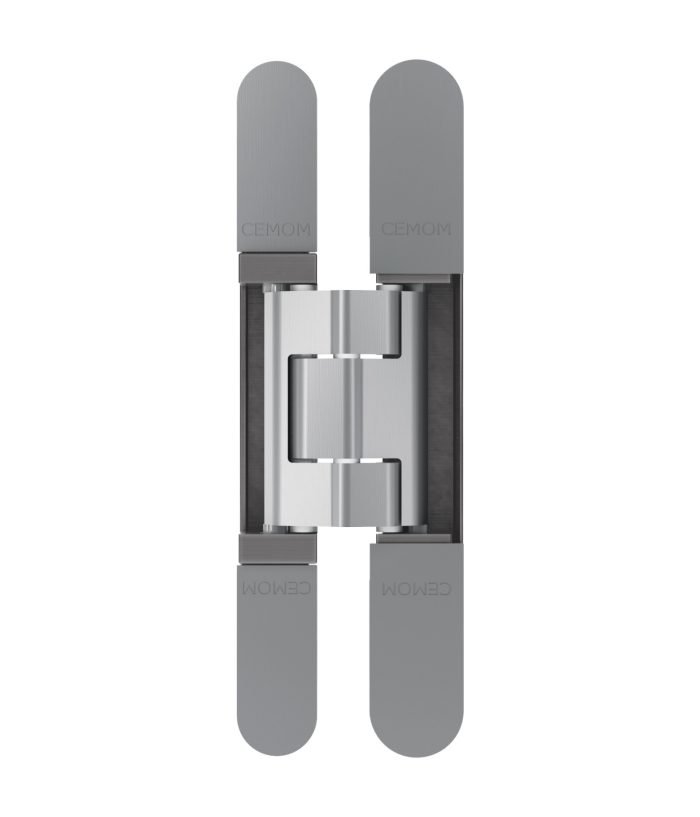

ESTETIC 130+8E
צירים סמויים
Product features
• completely concealed hinge for left and right handed doors
• suitable for claddings up to 8 mm
• load capacity 130 kg/2 hinges
• for use in wooden, steel and aluminum profiles
• for unrebated doors
• lubrication-free bearing
• 3D adjustment (side +/- 3mm, height +/- 3 mm, compression +/- 1 mm)
• steel front covers
• length 200 mm , width 37 mm
• 180° opening angle
• customised finishes on request

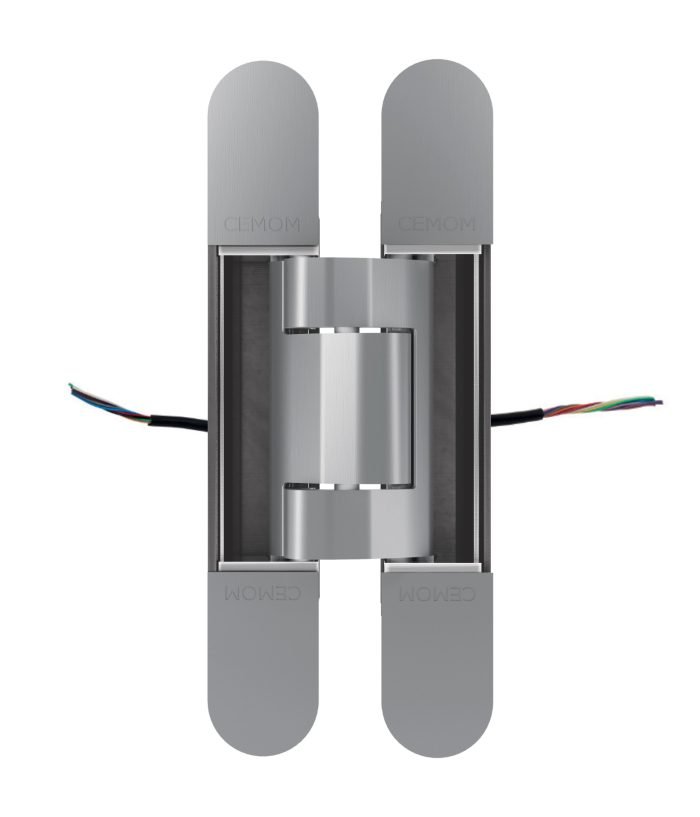

• provide the concealed connection between the door ant the frame
• suitable for electric locks, exit devices, low voltage door lights, etc.
• 12 wires with a diameter of 0,32 mm (AWG 28, UL1213 style); max. 6 circuits
• max. voltage 24V DC/AC , 2A continuous per circuit
• connectors not included
